CY4672

CY4672 is a PRoC LP reference design kit which provides an exemplary implementation of a low power, 2.4GHz bi-directional wireless keyboard, mouse and USB bridge based on PRoC LP single chip MCU and RF combo SoC. The mouse is a three button optical mouse with scroll wheel. Based on the CYRF69103 PRoC LP for peripherals and the avago 3040 optical sensor. The keyboard is a 101 key keyboard with multimedia keys and power keys. Features AES 128bit encryption and bi-directional communication for toggling CAPS LOCK and NUM LOCK LEDs. Based on the CYRF6936 WirelessUSB LP radio SoC and CY7C60123 Wireless enCoRe II MCU. A single chip USB bridge based on the CYRF69213 PRoC LP for bridges. Features support for Microsoft windows vista HotStart via two dedicated IOs.

• Up to 1 Mbps bidirectional wireless connectivity
• AgileHID protocol with interference avoidance algorithms for operation in 2.4GHz wireless technology
• Frequency and DSSS PN code diversity to support the simultaneous collocation
• Signal strength/battery life indicator software utility
• Precise optical navigation technology smooth and accurate surface navigation
• Over 1 year of battery life for both mouse and keyboard
• 10m wireless range

Ứng Dụng

Wireless, Portable Devices, Hobby & Education, Consumer Electronics, Industrial, Building Automation, Medical

Nội Dung

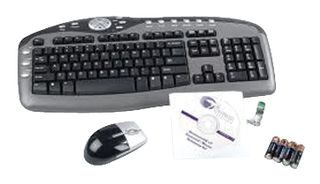

PRoC LP based mouse with ADNS-3040 optical sensor, WirelessUSB LS 101 multimedia keyboard, Small form factor bridge, Four batteries, Kit CD and documentation.
