SEN0171

Gravity: Digital PIR (motion) sensor designed to work with Arduino and Raspberry Pi. Pyroelectric infrared motion sensor can detect the infrared signals from a person or animals which are moving, and can output the switching detection signals. Therefore it can be applied to a variety of occasions which need to detect the movement of a persons body. Conventional pyroelectric infrared sensors require pyroelectric infrared detector, a professional chip and a complex peripheral circuit. This causes a difficult user experience and can lead to reliability issues. Now we launched this new pyroelectric infrared motion sensor especially designed for Arduino. A compact integrated digital body pyroelectric infrared sensor is used, leading to high reliability, low power consumption, and simple peripheral circuit.

• Input voltage of 3.3 to 5V, 6V maximum
• Working current: 15uA, working temperature range from -20⁰C to 85⁰C
• Output voltage of high 3V, low 0V
• Output delay time(high level): about 2.3 to 3seconds
• Detection angle: 100°
• Detection distance of 7meters
• Output indicator LED(When output HIGH, it will be ON)
• Pin limit current: 100mA
• Connection interface: PH2.0-3
• Module size: 30mm × 22mm

Nội Dung

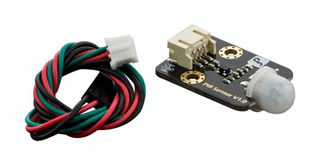

Gravity: digital PIR sensor x 1, Gravity: digital cable x 1.
