EDMOD101T

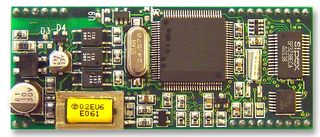

The EDMOD101T is a complete, ready to integrate and easy to use V90 modem module that comes with a powerful TCP/IP stack, and all in a compact form factor that makes it suitable for inclusion in a large range of appliances. The EDMOD101T is optimised to provide a reliable and price competitive solution for wired M2M projects. Including all the software and hardware components needed to transfer information over legacy analogue phone networks, the eDmod100's integration process does not require a big investment and offers a short time to market option for connecting devices. Based on standard off the shelf components like a 16bit DSP, the eDmod100 embeds the award winning eDevice TCP/IP stack, packaging eDevice's expertise in connecting and managing large groups of connected devices.

• 2187 analog devices 16bit DSP
• File allocation table on 8Mbit flash memory
• Serial connection up to 230Kbps to host equipment (TTL 3V3 or RS232)
• V90, V34 or V32bis modem speed options
• Caller ID for calling number identification
• RFC compliant PPP client for ISP connection
• In house RFC compliant TCP/IP stack driven with standard eDevice AT# interface
• PPP client/server
• DNS and NTP client
• Dynamic embedded HTTP web server

Ứng Dụng

Communications & Networking

Nội Dung

EDbox based on EDMOD101, Power Supply, DB9 & USB Cable, DB9 M/M adapter, SDK and Wizard Documentation.
