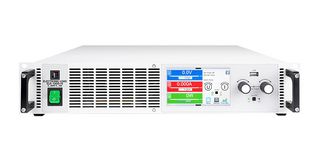

EA-ELR 10080-120 2U

EA-ELR 10080-120 2U is a ELR 10000 2U series programmable electronic DC load with energy recovery. The device is regenerative and feeds the energy back into the local grid with a high efficiency. The DC input operates as a flexible output stage with a constant power characteristic (auto ranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a host-server bus. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions.

• Wide range input, 110VAC - 240VAC +10 % 1ph
• Active power factor correction, typical 0.99
• Power range from 0 - 3000W
• Voltage range from 0 to 80VDC
• Current range from 0 to 120A
• Regulation mode CV, CC, CP, CR with fast crossover
• Digital regulation, high resolution with 16bit ADC & DACs, selection of speed: normal, fast, slow
• Colour 5“ TFT display with touch control and intuitive user interface
• Galvanically isolated share-bus for parallel operation of all power classes in the 10000 series
• Command languages and drivers: SCPI and Modbus, LabVIEW, IVI

Nội Dung

1 x electronic load device, 2 x remote sensing plugs, 1 x 1.8m USB cable, 1 x set of DC terminal covers, 1 x sense terminal cover, 1 x USB stick with documentation and software, 1 x cable tie for strain relief.

Ghi chú

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
