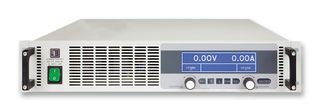

EA-PS 9040-40 2U

EA-PS 9040-40 2U is an EA-PS 9000 2U series microprocessor controlled laboratory power supply. It offers many functions and features in their standard version, making the use of this equipment remarkably easy and most effective. The clearly arranged control panel features two rotary knobs, six pushbuttons and two LEDs. Together with an illuminated, blue LC display for all values and status it simplifies the use of the device.

• Wide input voltage range from 90 to 264VAC, with active PFC
• 0-40V, 0-40A, 0 to 1000W output
• High efficiency up to 92%
• Flexible, power regulated output stage
• Various protection circuits (OVP, OCP, OPP, OTP)
• Control panel with pushbuttons and blue LCD for actual values, set values, status and alarms
• Temperature controlled fans for cooling
• Galvanically isolated USB and Ethernet port integrated
• EMC according to EN 55022 class B
• SCPI command language supported

Ghi chú

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
