| Nhà Sản Xuất | FLIR |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 73513-0102Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 1 tuần |
| Mã Đặt Hàng | 2889684 |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Thông báo với tôi khi có hàng trở lại
| Số Lượng | Giá |
|---|---|
| 1+ | US$14,153.800 |
Thông Tin Sản Phẩm
Tổng Quan Sản Phẩm

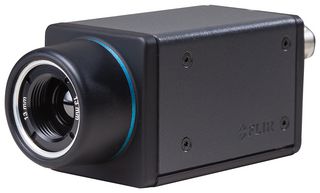

FLIR A65sc thermal imaging benchtop test kit offers system integration with universal plug and play. Using GigE Vision and GENICAM protocols these cameras can be fully configured from a PC, allowing camera control and image capture in real time. See heat patterns with the thermal imagery and extract temperature values from live or recorded imagery using ResearchIR recording and analysis software.
- FLIR A65 f=13mm with SC kit (7.5Hz)
- Compact (40mm x 43mm x 106mm)
- 8bit 640 x 512 pixel images streamed at 7.5Hz, signal linear
- 14bit 640 x 512 pixel images streamed at 7.5Hz, signal and temperature linear
- Synchronization between cameras possible
- 1x+1x GPIO
Nội Dung
Hard transport case, Infrared camera with lens, Base support, Cable tie (2 ea.), Ethernet cable CAT-6, 2m/6.6 ft (2 ea.), FLIR Research Studio 1-Year Subscription(license only), Focus adjustment tool, Gooseneck, Mains cable kit (UK,EU,US), PoE Injector (power over Ethernet), Printed documentation, Table stand.
Ghi chú
In addition, we offer standard calibration service for this product. Visit our calibration service page for more details.
Thông số kỹ thuật
| Temperature Min | -40°C |
|---|---|
| Thermal Sensitivity (NETD) | 0.05°C |
| Image Capture Frequency | 7.5Hz |
| Temperature Max | 550°C |
|---|---|
| IR Focus Distance Min | - |
Tài Liệu Kỹ Thuật (1)
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | Sweden Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 90275000 |
| Tuân thủ tiêu chuẩn RoHS: | Không áp dụng |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Không áp dụng |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | 5.3 |
