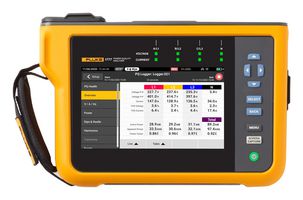

FLUKE-1777/BASIC

FLUKE-1777/BASIC is a three-phase power quality analyser. It makes data capture as reliable and easy as possible with this power quality analyser that features instrument powering from the measurement circuit, automatic connection check, and correction. It eliminates the complexities of power quality logging, troubleshooting, and analysis. Engineered to be the faster, easier way to perform power quality studies, this analyser offers automatic measurements, a straightforward user interface and setup, best-in-class specifications, and a simplified reporting platform. The instrument can also be powered directly from the measurement circuit, eliminating the need to find a power outlet or use a lengthy extension cord. This analyser is a 2-in-1 device that combines the troubleshooting functionality of a power quality meter with the robust analysis and logging capabilities of a standalone power quality analyser in a single, easy-to-use, handheld device.

• Automatically measure power and power quality parameters
• Power system connection and instrument setup autocorrection
• Capacitive touchscreen allows use with PPE (double gloved hands), providing clear results in seconds
• Capture damaging high-speed transients so you can mitigate their effects before equipment fails
• 1000V rms/1000VDC (1700Vpk) maximum input voltage
• 80kS/second at 50/60Hz sampling frequency
• 32GB microSD card (installed) data storage
• Operating temperature range from -10°C to 50°C
• Dimension is 280mm x 190mm x 62mm

Nội Dung

Power quality analyser, Voltage test lead, 2 x alligator clips, USB-C cable, Line cord, Test lead set, Cable marker set, Wall outlet adaptor, Hard case, 2-year warranty.
