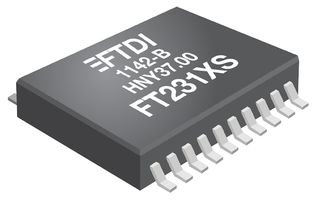

FT231XS-R

The FT231XS is an USB2.0 Full Speed IC, offers a compact bridge to full handshake UART interfaces. The device is an UART, capable of operating up to 3Mbaud, with low power consumption (8mA). The FT231XS includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over a UART interface.

• Single Chip USB to Asynchronous Serial Data Transfer Interface
• Entire USB Protocol Handled on Chip, No USB Specific Firmware Programming Required
• Fully Integrated 2048-byte EEPROM for Storing Device Descriptors and CBUS I/O Configuration
• Fully Integrated Clock Generation with no external crystal required + Optional clock o/p selection
• Data Transfer Rates from 300 baud to 3Mbaud
• 512-byte Transmit and Receive Buffer utilising buffer smoothing technology for high data throughput
• Royalty-free VCP and Direct (D2XX) drivers eliminate requirement for USB driver development
• Configurable CBUS I/O Pins
• Transmit and Receive LED Drive Signals
• UART Interface Support for 7 or 8 Data Bits, 1 or 2 Stop Bits and Odd/Even/Mark/Space/No Parity
• Synchronous and Asynchronous Bit Bang Interface Options with RD# and WR# Strobes
• Battery Charger Detection, presence of a charger on USB port to enable faster charging of Batteries
• Device Supplied Pre-programmed with Unique USB Serial Number
• Supports Bus Powered, Self-powered and High-power Bus Powered USB Configurations
• Integrated +3.3V Level Converter for USB I/O
• True 3.3V CMOS drive output and TTL input (Operates down to 1V8 with external pull up)
• Configurable I/O Pin Output Drive Strength
• Integrated Power-on-reset Circuit
• UART Signal Inversion Option
• Internal 3.3/1.8V LDO Regulators
• Low Operating Current of 8mA (typical) and USB Suspend Current of 125μA (Typical) Current
• Low USB Bandwidth Consumption
• UHCI/OHCI/EHCI Host Controller Compatible
• USB 2.0 Full Speed Compatible
