GDM-8341

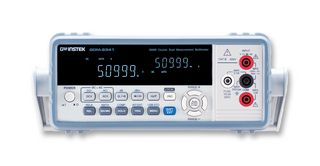

The GDM-8341 is a Dual Measurement Multimeter with exceptional features such as 50,000 counts, VFD dual-display, 0.02% basic DC voltage accuracy and a USB protocol connector to provide users with measurement precision, lucid data observation and the convenience to connect with the personal computer. The GDM-834x series not only supports the fundamental measurement items provided by general multimeters, but also equips with capacitance measurement functions. Furthermore, this series also provides many auxiliary functions to meet the measurement requirements for manufacturing process tests, educational experiments and testing facilities. With respect to storing and retrieving data, this series has two methods to offers first, the USB flash drive storage function - operating alone without connecting with a computer and second, USB interface and optional GPIB interface for automatic measurement system users to conveniently save and retrieve data.

• 50,000 counts, VFD display
• Dual measurement/dual display
• Selectable measurement speeds, the maximum - 40 readings/s for DCV
• Basic precision of DC voltage - 0.02%
• Auto/manual ranging
• True RMS (AC, AC+DC) measurements
• 11 Different measurement functions
• Maximum/minimum, REL, MX+B, 1/X, Ref%, Compare, Hold, dB and dBm
• Standard USB device interface to connect with a computer
• Convenient USB flash drive storage function
• Command compatibility and free software-remote control and data retrieving

Ứng Dụng

Test & Measurement, Hobby & Education

Ghi chú

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
