600 Bạn có thể đặt trước hàng ngay bây giờ
Số Lượng | Giá |
---|---|
1+ | US$23.070 |
20+ | US$22.580 |
75+ | US$21.890 |
300+ | US$21.390 |
600+ | US$20.930 |
Thông Tin Sản Phẩm
Tổng Quan Sản Phẩm

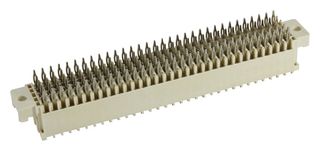

The 02 02 160 2201 is a Harting har-bus® 64 160-position Female DIN 41612 Backplane Signal Connector, with flange, straight orientation, copper alloy contacts with gold over nickel plated and press in termination and length 4.5/5.0mm. The design of HAR-BUS® 64 female connector allows mating of any combinations of the 5-row version without mechanical interference, thus making it possible for users to upgrade and maintain existing systems at lower costs. It is also possible to mate 5 row male connectors with 3 row female connectors. The feature of backward compatibility allows a gradual upgrade of existing Eurocard based systems without the additional cost of a complete system redesign. The HAR-BUS® 64 provides the opportunity to adapt the system economically without a complete redesign to new bus architecture.
- PL 2 according to IEC 61076-4-113 250 mating cycles
- UL94V-0 Flammability rating
Ứng Dụng
Industrial
Thông số kỹ thuật
har-bus 64
Receptacle
5 Row
Gold Plated Contacts
250
160Contacts
2.54mm
z + a + b + c + d
Copper Alloy
No SVHC (08-Jul-2021)
Tài Liệu Kỹ Thuật (3)
Sản phẩm thay thế cho 02 02 160 2201
Tìm Thấy 1 Sản Phẩm
Pháp Chế và Môi Trường
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Germany
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
RoHS
RoHS
Chứng Nhận Chất Lượng Sản Phẩm
