| Nhà Sản Xuất | KEITHLEY |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 5808Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 7 tuần |
| Mã Đặt Hàng | 2131247 |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Bạn cần thêm?
| Số Lượng | Giá |
|---|---|
| 1+ | US$305.590 |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | KEITHLEY |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 5808Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 7 tuần |
| Mã Đặt Hàng | 2131247 |
| Bảng Dữ Liệu Kỹ Thuật | |
| Test Connector Type A | Test Tip Probe |
| Test Connector Type B | 4mm Banana Plugs, Shrouded x 2 |
| Voltage Rating | 60VDC |
| Current Rating | 5A |
| Insulator Colour | - |
| Lead Length - Metric | 1.17m |
| Lead Length - Imperial | 46" |
| No. of Test Leads | 2 |
| Product Range | - |
| SVHC | No SVHC (17-Dec-2014) |
Tổng Quan Sản Phẩm

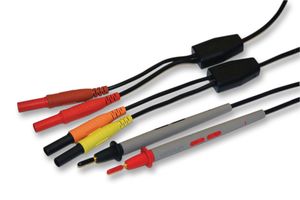

5808 is a single-pin kelvin probes. These probes are two single fixed-pin probes. Each probe has source and sense leads and color-coded safety banana plugs. They are designed for applications that require Kelvin resistance measurements with the convenience of a single point of circuit contact. The Kelvin Probes are intended for use in low-voltage 4-wire resistance applications, usually in low-level resistance applications (less than 100 Ω). The ohms current and voltage sensing leads are separately connected to the base of the single-pin probe tips. The probes are intended for use with an instrument that can measure 4-wire resistance, such as the Keithley Instruments Series 2000 high-performance digital multimeters or series 2400 SourceMeter instruments.
- 46in (1.17m) length test lead
- Maximum rated voltage to earth: 30Vrms or less, 42.4Vp AC or less, and 60V DC or less
- Maximum current of 5A continuous
- Operating environment: 32 to 104°F (0 to 40°C), up to 80 percent relative humidity (no condensation)
Thông số kỹ thuật
| Test Connector Type A | Test Tip Probe |
|---|---|
| Voltage Rating | 60VDC |
| Insulator Colour | - |
| Lead Length - Imperial | 46" |
| Product Range | - |
| Test Connector Type B | 4mm Banana Plugs, Shrouded x 2 |
|---|---|
| Current Rating | 5A |
| Lead Length - Metric | 1.17m |
| No. of Test Leads | 2 |
| SVHC | No SVHC (17-Dec-2014) |
Tài Liệu Kỹ Thuật (2)
Sản Phẩm Liên Kết
Tìm Thấy 1 Sản Phẩm
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | Taiwan Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 90309000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Có RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Chờ thông báo |
| SVHC: | No SVHC (17-Dec-2014) |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | .139706 |
