DMM7512

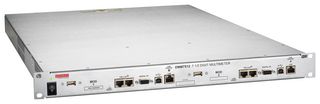

Keithley DMM7512 is a dual channel 7½-digit sampling multimeter that packs two independent and identical digital multimeters into a low profile 1U high, full rack width space-saving enclosure. Featuring industry leading density and performance, the DMM7512 is ideally suited for a range of demanding high-volume manufacturing test applications that require measurement capacity, performance and a compact footprint.

• Two high-precision, 7½-digit DMMs in a 1U high, full rack width chassis
• No space requirements between instruments, minimizes rack space
• Capture waveforms or identify transients with two 1 Msample/s 18-bit digitizers
• Trigger a waveform measurement on a signal level, a rising or falling edge, a window, or a digital trigger
• Store up to 27.5M timestamped readings on a waveform
• DC Voltage accuracy as low as 14 ppm
• 10 nV, 0.1 µΩ, and 1 pA sensitivities for making high resolution low level measurements
• High accuracy, low resistance measurements with offset compensated ohms, four-wire measurement, and dry circuit functions
• Auto-calibration improves accuracy and stability by minimizing temperature and time drift
• USBTMC-compliant and LAN LXI-compliant interfaces
• Reduce test time by executing test scripts with the Embedded Test Script Processor

Ứng Dụng

Test & Measurement, Aerospace, Automotive, Communications & Networking, Power Management, RF Communications, Sensing & Instrumentation, Wireless, Maintenance & Repair, System Monitoring

Ghi chú

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
