| Nhà Sản Xuất | KEYSIGHT TECHNOLOGIES |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 6811CSao chép |
| Mã Đặt Hàng | 2768694 |
| Phạm vi sản phẩm | 6800C Series |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | KEYSIGHT TECHNOLOGIES |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 6811CSao chép |
| Mã Đặt Hàng | 2768694 |
| Phạm vi sản phẩm | 6800C Series |
| Bảng Dữ Liệu Kỹ Thuật | |
| Product Range | 6800C Series |
Sản phẩm thay thế cho 6811C
Tìm Thấy 1 Sản Phẩm
Tổng Quan Sản Phẩm

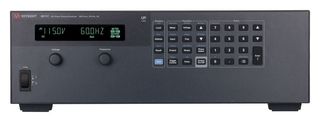

6811C is a 6800C series AC power source/analyser. This AC source combines the capabilities of a power amplifier and an arbitrary waveform generator. This allows you to simulate normal waveforms and many types of distorted power waveforms. The built-in power analyser combines the capabilities of a multimeter, oscilloscope, harmonic analyser and power analyser. This also be used to produce DC power, either alone or as a DC offset to an AC waveform. Since the user product will have to operate in the real world of unpredictable AC power, you need to design and verify its correct operation under a wide range of AC power inputs. Brownouts, dropouts, sags, and other irregularities are not unusual in many communities today. It features needed to easily accomplish this test goal either in an R&D environment or on the manufacturing test floor.
- Provides a complete AC and DC power and measurement solution
- Protect valuable DUTs with extensive protection
- 1 number of phases, 375VA maximum output rating (0 to 40°C)
- 300V RMS voltage, 3.25A RMS current
- 40A repetitive and non-repetitive peak current, 12 crest factor
- 0 to 1 range load power factor capability
- 285W DC power, ±425V DC voltage, 2.5A DC current
- DC, 45Hz to 1KHz output frequency range
- 0 to 1ohm resistance range, 20μh to 1mh inductance range
- 300Vrms/425VDC typical ground
Thông số kỹ thuật
| Product Range | 6800C Series |
|---|
Tài Liệu Kỹ Thuật (4)
Sản Phẩm Liên Kết
Tìm Thấy 2 Sản Phẩm
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | Malaysia Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 90308900 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Y-Ex RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Có RoHS |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | 34 |
