| Nhà Sản Xuất | KEYSIGHT TECHNOLOGIES |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | AC6801BSao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 7 tuần |
| Mã Đặt Hàng | 2843709 |
| Phạm vi sản phẩm | AC6800B Series |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Thông báo với tôi khi có hàng trở lại
| Số Lượng | Giá |
|---|---|
| 1+ | US$5,506.250 |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | KEYSIGHT TECHNOLOGIES |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | AC6801BSao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 7 tuần |
| Mã Đặt Hàng | 2843709 |
| Phạm vi sản phẩm | AC6800B Series |
| Bảng Dữ Liệu Kỹ Thuật | |
| Product Range | AC6800B Series |
| Output Power Max | 500VA |
| Output Voltage Max | 310Vrms |
| Output Current Max | 2.5A |
| No. of Phases | Single Phase |
| Plug Type | EU, UK |
| SVHC | To Be Advised |
Tổng Quan Sản Phẩm

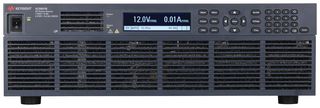

AC6801B is an AC6800B series basic AC power source. This device is used for voltage, current, power, AC, DC and AC+DC measurements. Its simple user interface allows to easily access, view setup and measurement information directly from the front panel or programmatically. Simply click through the metering options to modify the display to show measurement priorities and increasing levels of details. The basic AC power source is used for simple tasks such as simulating global AC power conditions, testing varying frequency and voltage combinations to simulate real-world conditions and Power factor correction testing and similar AC + DC applications (for example, test your input circuitry to look at ripple voltage). It comes with 3 year warranty.
- Single-phase, 500VA maximum power output
- AC output mode (low/high): 155Vrms/310Vrms voltage, 5A/2.5A maximum rms current
- DC output mode (low/high): 219V/438V voltage, 4A/2A maximum rms current, 400W power capacity
- Flexible I/O: LAN/LXI core and USB (standard) and GPIB (optional)
- Set-up, monitor and operate power sources remotely
- 310Vrms or 438VDC isolation to ground
- Operating temperature range from 0 to 40°C (non-condensing)
- 500VDC, 30Mohm or more insulation resistance, 1.5KV AC for 1 minute withstand voltage
- Input terminal: IEC 320 inlet, output terminal: M4 terminal block
- Indoor use, overvoltage category II
Nội Dung
AC6801B power source, 2.5m standard power cord, Ferrite core, Cable tie.
Ghi chú
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Thông số kỹ thuật
| Product Range | AC6800B Series |
|---|---|
| Output Voltage Max | 310Vrms |
| No. of Phases | Single Phase |
| SVHC | To Be Advised |
| Output Power Max | 500VA |
|---|---|
| Output Current Max | 2.5A |
| Plug Type | EU, UK |
Tài Liệu Kỹ Thuật (3)
Sản Phẩm Liên Kết
Tìm Thấy 7 Sản Phẩm
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | Japan Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 85044095 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Y-Ex RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Có RoHS |
| SVHC: | To Be Advised |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | 4.989512 |
