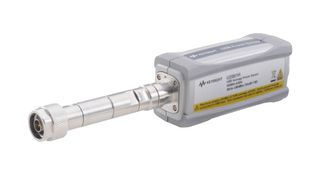

U2001H

U2001H is a U2000-series USB power sensor enable fast, simple setup by providing plug-and-play USB connectivity and by eliminating the need for a separate power meter. A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences.

• Frequency range of 10MHz to 6GHz
• Wide dynamic range (-50dBm to +30dBm)
• Internal zeroing while connected to the DUT
• High measurement speed of up to 250readings/second
• Support internal and external trigger measurements
• Display power measurements on a PC without the need of power meter
• Internal triggering capability and trace display for easy gate setup

Nội Dung

USB power sensor, Trigger cable BNC male to SMB female 50 ohm, 1.5m, Power sensor cable: 1.5m, U2000 Series USB power sensor documentation CD, N1918A power analysis manager assembly, Certificate of calibration, Keysight Instrument Control DVD (contains IO Libraries Suite, Command Expert and BenchVue software).
