00242-5

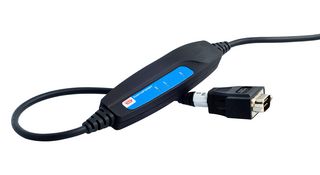

Kvaser Leaf SemiPro with MagiSync is a one channel USB interface for CAN. It offers the possibility to easily connect several interfaces to a PC. The time-stamping is synchronised through Kvaser MagiSync. Providing flexibility and making it perfect for multi-channel applications. High-Speed, Low-Speed and Single-Wire CAN are supported through different product versions. Kvaser MagiSyncTM is a new innovative way of synchronising several different channels. All units are synchronised, achieving a high precision virtual clock accurate to the microsecond. No external cables are necessary; you get instant synchronisation as soon as you connect. For this to work the units must reside on the same USB root hub.

• Automatic and accurate clock synchronisation
• Messages are time-stamped and synchronised with a precision of 25 microsecond
• Handles up to 15000 messages per second.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
• Reliable error handling
• Supports silent mode for analysing tools
• Low power consumption
• Excellent EMC performance
• Galvanic isolation of the CAN bus driver stage to protect the hardware
• Interfaces the CAN bus with a 9-pin D-SUB connector

Ứng Dụng

Communications & Networking, Multimedia, Portable Devices, Automotive
