LM400

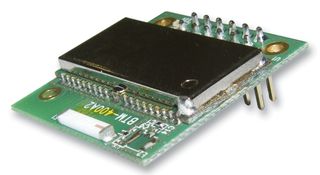

LM400 is a long range 12 pin plug and play Bluetooth module with on-board chip antenna for 3.0V to 3.6V voltage operation. This module is CSR BC04 Class 1 module with on-board chip antenna. This module comes with a 12 pin header for easy plug and play integration on customer platform. It is suitable for serial port applications over a range of 100m and comes with Bluetooth v2.0+EDR compliant SPP firmware. It can be configured using our set of AT Commands sent over UART. This module has been integrated with thermal printers.

• Used in LM Technologies Ltd thermal printer
• Bluetooth v2.0 + EDR compliant backward compatible with Bluetooth v1.2/1.1 specification
• Full Bluetooth Data rate up to 3Mbps
• Class 1 Radio with 100m range in open space
• Single onboard antenna connector support (optional)
• Onboard chip antenna
• Easy Plug n Play integration
• Excellent solution to integrate wireless connectivity to a product for long range connectivity
• All the firmware and hardware design developed and owned by LM Technologies Ltd
• Supports 7 ACL links and 3 SCO links (HCI mode firmware)

Ứng Dụng

Wireless, Portable Devices, Industrial, Consumer Electronics
