ATEVK1101

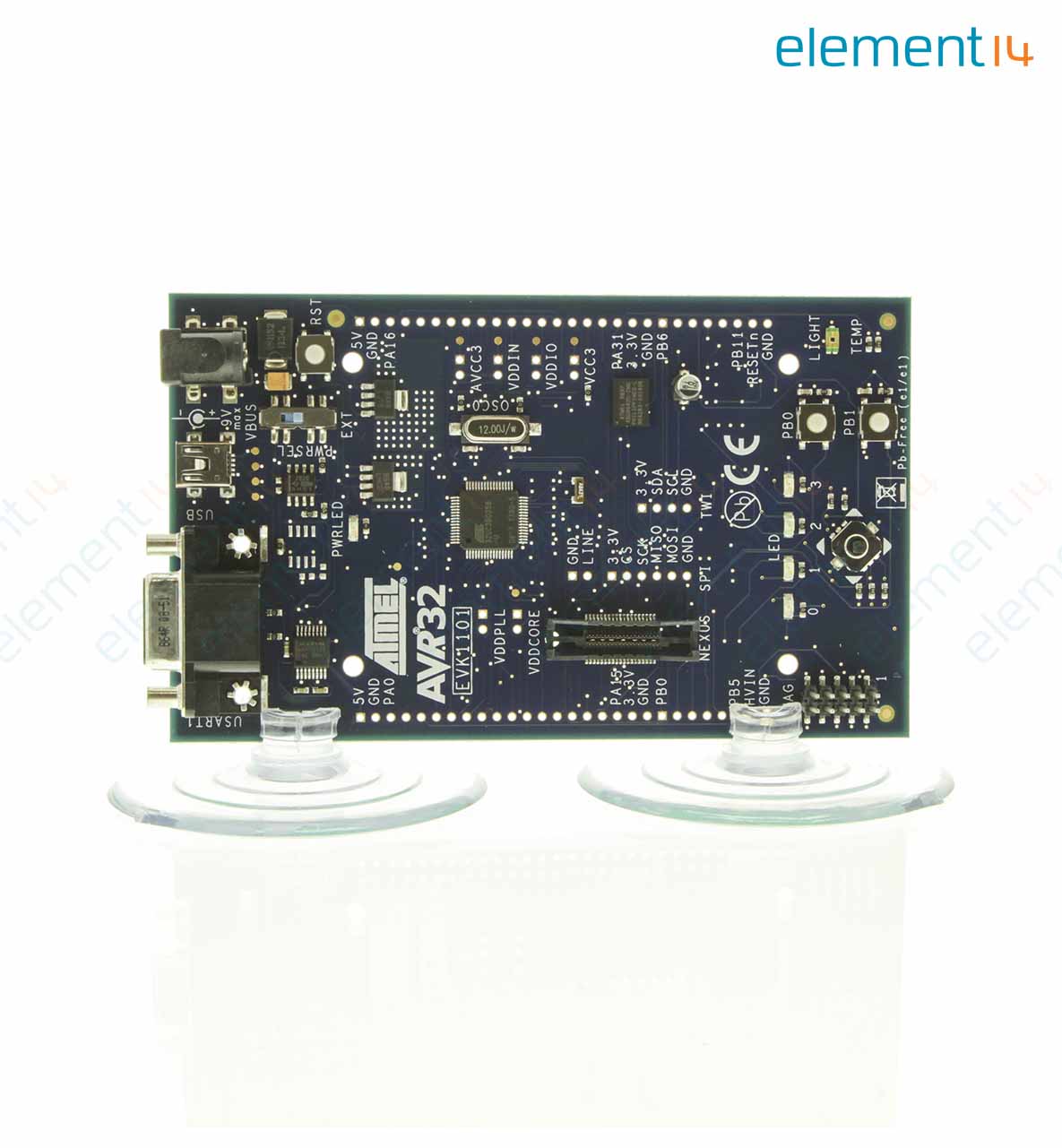

The ATEVK1101 is an Evaluation kit and development system for the Atmel AVR UC3B microcontrollers. The kit is equipped with a rich set of peripherals and memory to make it easy to assess the full potential of 32bit AVR UC3B devices. The EVK1101 provides a complete development environment for the AT32UC3B microcontroller series from Atmel. The device is preloaded with an application, called the control panel. The control panel application is a demonstration application. Its purpose is to scan on board sensors and actuators data and events (data acquisition through ADC channels) and make these available to a PC application through a simple USB cable. The AVR UC3 B series is designed for high data throughput, and outstanding computing performance in space constrained applications.

• Light, temperature sensors
• Connectors for JTAG, Nexus, USART, USB 2.0, TWI, SPI
• SD and MMC card reader
• High data throughput
• Outstanding computing performance in space constrained applications

Ứng Dụng

Building Automation, Consumer Electronics, Industrial, Sensing & Instrumentation, Audio

Ghi chú

90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
