Bạn cần thêm?
Số Lượng | Giá |
---|---|
1+ | US$0.064 |
1000+ | US$0.055 |
Thông Tin Sản Phẩm
Tổng Quan Sản Phẩm

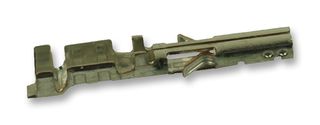

The 43030-0004 is a Micro-Fit 3.0™ female socket crimp terminal made of phosphor bronze with tin plated finish. This 43030 series female crimp terminal accepts 30 to 26AWG wire. The socket terminal mates with 43031 Micro-Fit 3.0™ male crimp terminals. It can be used with 43025, 43645 Micro-Fit 3.0™ receptacle housings and 44133 Micro-Fit BMI™ panel mount receptacle housings. The terminal is suitable for power applications.
- Locking tab on terminal secures terminal in housing
- Maximum current per contact is 5A
Ứng Dụng
Alternative Energy, Automotive, Communications & Networking, Consumer Electronics, Medical
Thông số kỹ thuật
Micro-Fit 3.0 43030
Crimp
Tin Plated Contacts
30AWG
No SVHC (21-Jan-2025)
Socket
26AWG
Molex Micro-Fit 3.0 43025, 43645 & Micro-Fit BMI 44133 Series Receptacle Housing Connectors
Phosphor Bronze
Sản phẩm thay thế cho 43030-0004
Tìm Thấy 2 Sản Phẩm
Sản Phẩm Liên Kết
Tìm Thấy 2 Sản Phẩm
Pháp Chế và Môi Trường
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:China
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
RoHS
RoHS
Chứng Nhận Chất Lượng Sản Phẩm
