55909-0574..

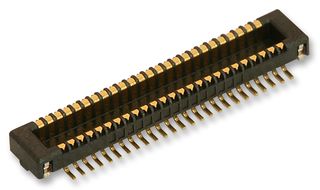

The 55909-0574 from Molex is a 0.4mm pitch dual row board-to-board SlimStack plug. This plug is made of brass material with gold material plating and gold termination plating. It mates with SlimStack board-to-board receptacle 51338 and 500913.

• Vertical orientation
• 50 circuits (loaded)
• Maximum durability of 30 mating cycles
• Lock to mating part
• Surface mount termination interface style
• Operating temperature range from -25°C to +85°C
• Maximum 0.3A current per contact, maximum 50V AC (RMS)/DC voltage
• Black colour resin
• With PCB retention and no breakaway
• Non stackable

Ứng Dụng

Automotive, Consumer Electronics, Data / Computing, Industrial, Medical, Portable Devices
