MP720009 EU-UK

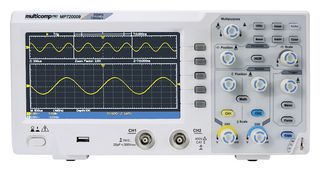

The Multicomp Pro MP720009 is a 2-channel, 20MHz, economical type digital oscilloscope. This oscilloscope features a 7" high resolution LCD colour display, front-sided USB CI design and ultra-thin device body.

• Large 7" high resolution LCD display (800x480)
• Friendly UI interaction - easy-accessible operation menu ensures users retrieve results conveniently
• Windows extension facilitates the observation of abnormal signal from full waveforms
• 30 auto-measurement options
• DC, AC and GND input couplings
• 8 bit vertical resolution (A/D) (2 channels simultaneously)
• 5mV/div - 5V/div vertical sensitivity (at input)
• Edge & video trigger types
• Auto, normal and single trigger modes
• Dimensions - 301x152x70mm
• Device weight - 1.1kg
• UK type G and Euro type E / F (Schuko) mains plugs
• Supplied with UK Type G & Euro Type E/F Power Cord

Ứng Dụng

Test & Measurement, Laboratory

Nội Dung

Digital Storage Oscilloscope, 2x 60MHz Probes, Probe Manual, Accessories Bag, Operating Instructions, CD-ROM, UK & EU Power Cords

Ghi chú

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
