Hình ảnh chỉ mang tính minh họa. Vui lòng xem phần mô tả sản phẩm.
Nhà Sản XuấtMULTICOMP PRO
Mã Số Linh Kiện Nhà Sản XuấtMP720107
Mã Đặt Hàng3228048
Bảng Dữ Liệu Kỹ Thuật
5 có sẵn
Bạn cần thêm?
5 Giao hàng trong 4-6 ngày làm việc(Vương quốc Anh có sẵn)
Số Lượng | Giá |
---|---|
1+ | US$1,412.370 |
Giá cho:Each
Tối thiểu: 1
Nhiều: 1
US$1,412.37
Nhập Mã Số Linh Kiện / Ghi chú dòng
Chỉ thêm phần Xác nhận đơn hàng, Hóa đơn và Ghi chú giao hàng cho đơn hàng này.
Mã số này sẽ được thêm vào phần Xác nhận đơn hàng, Hóa đơn, Ghi chú giao hàng, Email xác nhận trên web và Nhãn sản phẩm.
Thông Tin Sản Phẩm
Nhà Sản XuấtMULTICOMP PRO
Mã Số Linh Kiện Nhà Sản XuấtMP720107
Mã Đặt Hàng3228048
Bảng Dữ Liệu Kỹ Thuật
Product Range-
Scope Channels2+1 Channel
Bandwidth300MHz
Sampling Rate2.5GSPS
Display Memory Depth40 Mpts
Calculated Rise Time1.17ns
Scope Display TypeLCD Colour
Kit ContentsDigital Storage Oscilloscope, EU & UK Mains Leads, 2x Probes, Probe Adjust Tool, USB Cable, Operating Instructions, CD-ROM
Manufacturer Warranty3 Years
Plug TypeEU, UK
SVHCLead (23-Jan-2024)
Tổng Quan Sản Phẩm

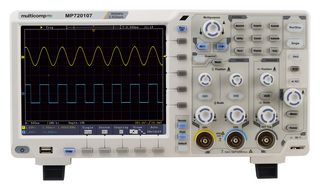

The MP720107 from Multicomp Pro is a 300MHz, 2-channel digital storage oscilloscope with decoding kit (RS232, SPI, I2C, CAN trigger/decode) and touch-screen functionality.
- Ultra-thin design, less space accommodation
- Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX
- 8" 800x600 high resolution LCD touch-screen for a more user-friendly operating experience
- 8-bits vertical resolution ADC
- 40M record length
- Max 75,000 wfms/s waveform refresh rate
- Low background noise, vertical sensitivity 1mV/div - 10V/div
- Multi-trigger and bus decoding function
- VGA port - better solution for video expansion and teaching demonstrations
- SCPI and LabVIEW supported
- 1ns/div - 1000 horizontal scale (s/div), step by 1-2-5
- DC, AC and GND input coupling
- Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232 and CAN trigger types
- Auto, normal and single trigger modes
- Dimensions (W x H x D) - 340 x 177 x 90mm
- Device Weight – 2.6kg
Nội Dung
Digital Storage Oscilloscope, EU & UK Mains Leads, 2x Probes, Probe Adjust Tool, USB Cable, Operating Instructions, CD-ROM
Ghi chú
Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
Thông số kỹ thuật
Product Range
-
Bandwidth
300MHz
Display Memory Depth
40 Mpts
Scope Display Type
LCD Colour
Manufacturer Warranty
3 Years
SVHC
Lead (23-Jan-2024)
Scope Channels
2+1 Channel
Sampling Rate
2.5GSPS
Calculated Rise Time
1.17ns
Kit Contents
Digital Storage Oscilloscope, EU & UK Mains Leads, 2x Probes, Probe Adjust Tool, USB Cable, Operating Instructions, CD-ROM
Plug Type
EU, UK
Tài Liệu Kỹ Thuật (4)
Sản Phẩm Liên Kết
Tìm Thấy 3 Sản Phẩm
Pháp Chế và Môi Trường
Nước xuất xứ:
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:China
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:China
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Số Thuế Quan:90302000
US ECCN:3A992.g
EU ECCN:NLR
Tuân thủ tiêu chuẩn RoHS:Có
RoHS
Tuân thủ tiêu chuẩn RoHS Phthalates:Có
RoHS
SVHC:Lead (23-Jan-2024)
Tải xuống Chứng Nhận Chất Lượng Sản Phẩm
Chứng Nhận Chất Lượng Sản Phẩm
Trọng lượng (kg):4
