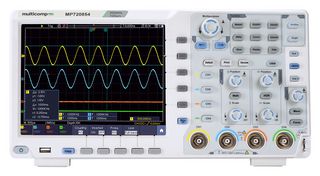

MP720854

This Multicomp Pro MP720854 is Digital Touch Screen Storage Oscilloscope, 4-channel 200MHz Bandwidth, 1GS/s sampling rate with multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and VGA.

• 200MHz bandwidth, 1GS/s sample rate
• 40M record length max 70,000 wfms/s waveform refresh rate
• Low background noise
• 800x600 resolution LCD screen with multi-touch, more user-friendly operation experience
• SCPI and LabVIEW supported
• Multi-triggers and bus decoding functions
• Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and VGA
• UK mains plug (type G), as used in the UK, IRL, Cyprus, Saudi Arabia, Malta and many others.

Ứng Dụng

Test & Measurement, Electronics Design, Hobby & Education

Nội Dung

x1 Digital Oscilloscope; x1 Power Cord; x1 CD Rom; x1 Manual; x1 USB cable; x2 Probe; x1 Probe adjustment screwdriver

Ghi chú

Do not store or leave the instrument where the liquid crystal display will be exposed to direct sunlight for long periods of time.
