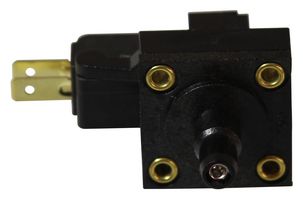

Hình ảnh chỉ mang tính minh họa. Vui lòng xem phần mô tả sản phẩm.
Nhà Sản XuấtMULTICOMP PRO
Mã Số Linh Kiện Nhà Sản XuấtPSF109S-3-8
Mã Đặt Hàng1734683
Bảng Dữ Liệu Kỹ Thuật
30 có sẵn
Bạn cần thêm?
30 Giao hàng trong 4-6 ngày làm việc(Vương quốc Anh có sẵn)
Số Lượng | Giá |
---|---|
1+ | US$53.050 |
10+ | US$49.340 |
25+ | US$46.120 |
Giá cho:Each
Tối thiểu: 1
Nhiều: 1
US$53.05
Nhập Mã Số Linh Kiện / Ghi chú dòng
Chỉ thêm phần Xác nhận đơn hàng, Hóa đơn và Ghi chú giao hàng cho đơn hàng này.
Mã số này sẽ được thêm vào phần Xác nhận đơn hàng, Hóa đơn, Ghi chú giao hàng, Email xác nhận trên web và Nhãn sản phẩm.
Thông Tin Sản Phẩm
Nhà Sản XuấtMULTICOMP PRO
Mã Số Linh Kiện Nhà Sản XuấtPSF109S-3-8
Mã Đặt Hàng1734683
Bảng Dữ Liệu Kỹ Thuật
Pressure TypeVacuum
Pressure Fitting Style1/4" Axial Port
Sensor MountingPanel / Chassis
Switching Voltage Max250VAC
Electrical ConnectionQuick Connect
Switching Current Max25A
Pressure Port Size1/8"
Transducer Connection / TerminationQuick Connect
Deadband Min-
Deadband Max-
Tổng Quan Sản Phẩm
The PSF109S-3-8 is a versatile high current vacuum Pressure Switch offers a controllable hysteresis (deadband), a wide-range field adjustable set point, snap action and choice of standard vacuum port design options. For custom applications, our in-house design and engineering team provide rapid prototyping and manufacturing turnaround.
- Controllable hysteresis (dead band)
- Field adjustable vacuum set point, from -3" H2O to -12psi (-2" H2O available as fixed as point)
- Snap action basic switch, up to 25A, 125/250VAC
- Dependable long life (10+ million cycles)
- 1/8" NPT port style
- Small size, lightweight
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Ứng Dụng
Sensing & Instrumentation
Thông số kỹ thuật
Pressure Type
Vacuum
Sensor Mounting
Panel / Chassis
Electrical Connection
Quick Connect
Pressure Port Size
1/8"
Deadband Min
-
Pressure Fitting Style
1/4" Axial Port
Switching Voltage Max
250VAC
Switching Current Max
25A
Transducer Connection / Termination
Quick Connect
Deadband Max
-
Tài Liệu Kỹ Thuật (2)
Sản Phẩm Liên Kết
Tìm Thấy 2 Sản Phẩm
Pháp Chế và Môi Trường
Nước xuất xứ:
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:United States
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:United States
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Số Thuế Quan:90262020
US ECCN:EAR99
EU ECCN:NLR
Tuân thủ tiêu chuẩn RoHS:Có
RoHS
Tuân thủ tiêu chuẩn RoHS Phthalates:Có
RoHS
Tải xuống Chứng Nhận Chất Lượng Sản Phẩm
Chứng Nhận Chất Lượng Sản Phẩm
Trọng lượng (kg):.02
