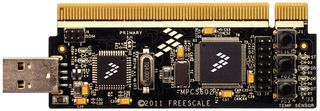

TRK-USB-MPC5602P

TRK-USB-MPC5602P is a StarterTRAK USB Dev Kit for Qorivva MPC5602P, Primary Tower connector, OSBDM debug through USB. This MPC5xxx StarterTRAK USB kit designed to easily and inexpensively give the NXP 32-bit MPC5xxx MCUs a test drive. It features a PCI card-edge for compatibility with the NXP Tower® System so you can create a custom development system based on your design needs. The NXP MPC560xP 32-bit MCUs are scalable Power Architecture® devices supported by an enablement ecosystem that includes software drivers, operating systems and configuration code to help you quickly implement your design.

• MPC5602P Microcontroller in a 100LQFP package
• OSBDM debugger through USB
• Temperature sensor
• Three user-programmable multi-coloured LEDs
• 2 user-programmable push buttons w/ enable and pull-up & pulldown options
• Primary Tower® System connector
• 14-Pin JTAG connection port
• Two power LEDs for USB and target respectively
• RESET push button and LED indicator w/ enable
• Board size is 3.5” x 1.375” and 5V DC, 500mA max USB cable power input

Nội Dung

TRK-USB-MPC5602P board, NXP warranty card.

Ghi chú

The board’s embedded OSJTAG is intended to function with the onboard processor only. It cannot be used to communicate with other devices.
