UCANS32K1SIC

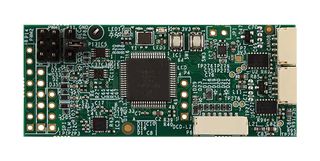

UCANS32K1SIC is a CAN signal improvement capability (SIC) evaluation board designed for both automotive and industrial applications. CAN SIC enables more complex networks and CAN FD communication up to 8 Mbps by reducing the effects of signal ringing. The UCANS32K1SIC provides two CAN SIC interfaces and is based on the 32-bit Arm® Cortex®-M4 based S32K1 microcontroller family with access to ports on the processor. Also, the UCANS32K1SIC features EdgeLock® SE050 secure element for authentication and encryption development.

• Dual CAN FD PHYs with dual connectors for daisy chain operation
• PX4 / DroneCode connector standard compliant
• DCD-LZ debug interface with SWD+Console / UART
• RGB LED
• Programmable user buttons (e.g., for arming)
• UART with full handshaking and 5V / 3V switchable voltage level
• SocketCAN CAN network driver
• I2C, SPI interface
• RC-PWM power output with internal or BEC / external power
• Overcurrent protection

Nội Dung

1 x UCANS32K1SIC board, 1 x DCD-LZ debug adapter w/cable (console and program), 1 x CAN-TERM-BRD w/ cable (RevB with MicroUSB input), 1 x CAN cable with both ends (JST-GH 4 pin 200mm).
