Nhà Sản XuấtAMS OSRAM GROUP
Mã Số Linh Kiện Nhà Sản XuấtSPL PL90
Mã Đặt Hàng1226448
Được Biết Đến NhưQ62702P1760
Bảng Dữ Liệu Kỹ Thuật
Ngưng sản xuất
Thông Tin Sản Phẩm
Nhà Sản XuấtAMS OSRAM GROUP
Mã Số Linh Kiện Nhà Sản XuấtSPL PL90
Mã Đặt Hàng1226448
Được Biết Đến NhưQ62702P1760
Bảng Dữ Liệu Kỹ Thuật
Wavelength Typ905nm
No. of Pins2Pins
Diode Case StyleRadial Leaded
Output Power25W
Data Rate Max-
Laser Class-
Operating Temperature Min-40°C
Operating Temperature Max85°C
Current Rating40A
Product Range-
SVHCNo SVHC (23-Jan-2024)
Tổng Quan Sản Phẩm

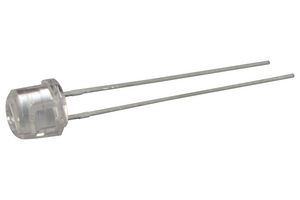

The SPLPL90 from Osram is a radial leaded pulsed laser diode in plastic package. Typical applications of device are hand held laser range finders (LRF) for golfers, hunters, civil engineers, pre crash detection, collision avoidance, adaptive rear lighting), traffic surveillance (Laser speed gun, traffic recording, vehicle classification, distance measurement, fog detection) and professional laser sensors for distance measuring, positioning, protection.
- Optical peak power up to 25W
- Laser wavelength is 905nm
- Suited for short laser pulses from 1ns to 100ns
- Laser aperture 200µm x 2µm
- Forward current of 40A
- Operating temperature range from -40°C to 85°C
- Cost effective plastic package for high volume applications
Ứng Dụng
Automotive
Thông số kỹ thuật
Wavelength Typ
905nm
Diode Case Style
Radial Leaded
Data Rate Max
-
Operating Temperature Min
-40°C
Current Rating
40A
SVHC
No SVHC (23-Jan-2024)
No. of Pins
2Pins
Output Power
25W
Laser Class
-
Operating Temperature Max
85°C
Product Range
-
Tài Liệu Kỹ Thuật (3)
Pháp Chế và Môi Trường
Nước xuất xứ:
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Malaysia
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Malaysia
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Số Thuế Quan:85414100
US ECCN:EAR99
EU ECCN:NLR
Tuân thủ tiêu chuẩn RoHS:Có
RoHS
Tuân thủ tiêu chuẩn RoHS Phthalates:Có
RoHS
SVHC:No SVHC (23-Jan-2024)
Tải xuống Chứng Nhận Chất Lượng Sản Phẩm
Chứng Nhận Chất Lượng Sản Phẩm
Trọng lượng (kg):.000204
