| Nhà Sản Xuất | PERINET |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | PRN.000.025.00010Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 20 tuần |
| Mã Đặt Hàng | 4713222 |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Bạn cần thêm?
| Số Lượng | Giá |
|---|---|
| 1+ | US$652.120 |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | PERINET |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | PRN.000.025.00010Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 20 tuần |
| Mã Đặt Hàng | 4713222 |
| Bảng Dữ Liệu Kỹ Thuật | |
| Processor Core Type | ARM Cortex A8, ARMv7 Single Core |
| Core Number | AM3352 |
| Silicon Family Name | - |
| Processor Speed | 1GHz |
| RAM Memory Size | 1GB |
| Kit Contents | Open Modular Edge Computer |
| Interfaces | - |
| Operating System | Linux |
| Operating Temperature Range | -25°C to +75°C |
| Fanless | - |
| SVHC | No SVHC (21-Jan-2025) |
Tổng Quan Sản Phẩm

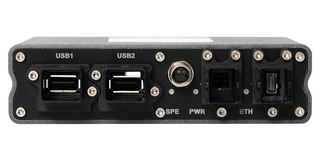

PRN.000.025.00010 is a single core, 100Base-TX, 100BASE-T1, IP20 periMICA modular edge computer for field-level IOT application, even in rough environments. The periMICA Edge Computer can be configured with the following hardware modules: Processor modules (P), Supply modules (S), Function modules (F). It hosts virtualized applications and provides a runtime for lightweight Linux-containers. Just as you would in the cloud, the periMlCA allows you to set up applications locally. So, migration of applications between the field and your IT infrastructure becomes easy. A periMICA is the Perfect tool for gathering and preprocessing data: Straight from the field-level, where sensors and actuators are networked by the Perinet Smart Components.
- CortexA8, ARMv7 1GHz single core, 1GB RAM, 4GB eMMC
- Brand labelling supported, user-friendly web-based UI and IOT native: IPv6, Secure by design (mTLS)
- Various Ethernet options: Fast Ethernet (IOOBASE-TX) and single Pair Ethernet (IOOBASE-TI)
- RESTfuI API, open source software and customizable hard- & software
- Containerized S/W (LXC): MQTT broker, Dashboard editor, PK12GO, user-friendly security
- Containerized S/W (LXC): MODBUS-TCP bridge, JTAG debug container
- Aluminium housing material
- LEDs to indicate the operating status
- Operation temperature range from -25 to +75°C and relative humidity is 5 to 95% non-condensing
- Dimension is 132mm x 35mm x 86mm
Thông số kỹ thuật
| Processor Core Type | ARM Cortex A8, ARMv7 Single Core |
|---|---|
| Silicon Family Name | - |
| RAM Memory Size | 1GB |
| Interfaces | - |
| Operating Temperature Range | -25°C to +75°C |
| SVHC | No SVHC (21-Jan-2025) |
| Core Number | AM3352 |
|---|---|
| Processor Speed | 1GHz |
| Kit Contents | Open Modular Edge Computer |
| Operating System | Linux |
| Fanless | - |
Tài Liệu Kỹ Thuật (1)
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | Germany Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 84715000 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Có RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Chờ thông báo |
| SVHC: | No SVHC (21-Jan-2025) |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | .65 |
