6405/POM

6405/POM is an insulation piercing clip with steel spring and brass jack. The contacts features insulated wires without cutting or stripping insulation. The spring loaded double V-clamp holds wire centred for piercing needle. This clip featured with pierces insulation on wires from 22 to 14AWG. Tiny hole left in insulation can easily be sealed with standard 4mm banana plug test leads with or without safety shroud.

• High visibility bright yellow body
• Rotating banana jack will not twist test lead while the needle is screwed into wire
• Make contact with insulated wires without cutting or stripping insulation
• Spring loaded double "V" clamp holds wire cantered for piercing needle
• Pierces insulation on wires from 22 to 14AWG (0.030" through 0.180" diameter)
• Tiny hole left in insulation can easily be sealed
• High visibility bright yellow body
• Red or black color-coded cap for easy identification
• Rotating banana jack will not twist test lead while the needle is screwed into wire
• Hardened stainless steel piercing tip, steel spring, brass jack

Nội Dung

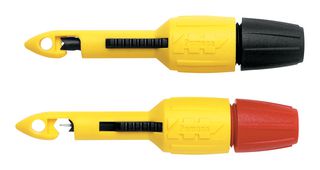

Two clips (one red and one black).
