| Nhà Sản Xuất | RECOM POWER |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | RPL-20-EVM-1Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 12 tuần |
| Mã Đặt Hàng | 4469470 |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Thông báo với tôi khi có hàng trở lại
| Số Lượng | Giá |
|---|---|
| 1+ | US$99.090 |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | RECOM POWER |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | RPL-20-EVM-1Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 12 tuần |
| Mã Đặt Hàng | 4469470 |
| Bảng Dữ Liệu Kỹ Thuật | |
| Silicon Manufacturer | Recom Power |
| Silicon Core Number | RPL-20 |
| Kit Application Type | Power Management - Voltage Regulator |
| Application Sub Type | Buck Regulator Module |
| Kit Contents | Evaluation Module RPL-20 |
| Product Range | - |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (04-Feb-2026) |
Tổng Quan Sản Phẩm

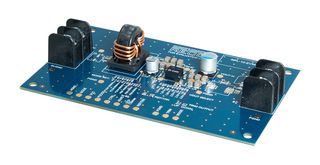

RPL-20-EVM-1 is an evaluation platform for RPL-20 buck regulator module. It generates a constant output voltage selectable from 1.0V, 1.2V, 1.8V, 2.5V, 3.3V and 5V from a DC input in the range of 4 to 16V. It has a maximum continuous output current of 20A. Switching frequency can be set from 600KHz, 800KHz and 1000KHz in PSM mode or FCCM mode. All the functions of the RPL-20 such as output voltage selection, mode/frequency selection, control, power good, Soft start time, Over current protection (OCP), Under voltage lockout (UVLO), trim and output sense can be readily evaluated. Also, the behaviour in overload or over-temperature can be evaluated easily before it is designed in. The evaluation board also contains the filter components to meet EMC Class B levels. Alternate component positions are included to allow experimentation to optimize the EMC performance depending on operating conditions and budget.
- Thermal design considerations included
- EMI Class B filter
- Easy evaluation of control, power good, soft-start and sensing functions
Thông số kỹ thuật
| Silicon Manufacturer | Recom Power |
|---|---|
| Kit Application Type | Power Management - Voltage Regulator |
| Kit Contents | Evaluation Module RPL-20 |
| Automotive Qualification Standard | - |
| Silicon Core Number | RPL-20 |
|---|---|
| Application Sub Type | Buck Regulator Module |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Tài Liệu Kỹ Thuật (1)
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | Austria Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Có RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Chờ thông báo |
| SVHC: | No SVHC (04-Feb-2026) |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | .076 |
