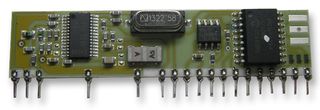

HIRK-433AP

A single in line (SIL) hybrid module providing complete four channel Radio Receiver/Decoder systems. When used with the 110 or 120series pocket keyfobs a complete remote telemetry system is obtained with up to 150 metres range. The module consists of a front end super-heterodyne or super-regen RF receiver with an embedded microcontroller decoding a highly secure Keeloq protocol signal. The module has an easy-to-use 'LEARN' facility, and is capable of learning up to 50 unique keyfob encoders. The module requires a 5V power supply and provides a direct LED drive showing data reception and four digital data outputs. The outputs may be programmed for momentary or latching configuration. The modules have flash re-programmability feature to enable field re-programming of the controller.

• Miniature RF Receiver and Decoder SIL modules
• Advanced Keeloq Decoding
• Advanced laser trimmed ceramic module
• AM range up to 100m
• Easy to learn transmitter feature
• Outputs, momentary or latching & serial data
• Flash re-programmable
• 3dB bandwidth: ±400kHz
• Flash re-programmable
• HIR6 low power version (<lt/>1mA)

Ứng Dụng

Communications & Networking, Industrial, Wireless, Security, RF Communications
