| Nhà Sản Xuất | ROHDE & SCHWARZ |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | FPL-EMI3Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 8 tuần |
| Mã Đặt Hàng | 3813170 |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Thông báo với tôi khi có hàng trở lại
| Số Lượng | Giá |
|---|---|
| 1+ | US$23,377.200 |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | ROHDE & SCHWARZ |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | FPL-EMI3Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 8 tuần |
| Mã Đặt Hàng | 3813170 |
| Bảng Dữ Liệu Kỹ Thuật |
Tổng Quan Sản Phẩm

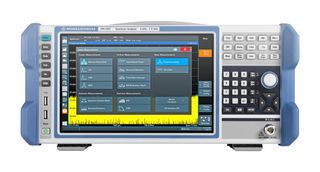

FLP-EMI3 is a core bundle up to 3GHz for EMI pre-compliance or teaching labs applications. The bundle consisting of FPL1003 spectrum analyser 5KHz to 3GHz and other pre-installed options (FPL1-B5 additional interfaces, FPL1-B9 internal generator, FPL1-B22 RF preamplifier, FPL1-K54 EMI measurement application). The R&S®FPL1000 signal and spectrum analyser makes measuring fast and simple. The intuitive touchscreen is straightforward and easy to use. With solid RF performance, light weight and small footprint, the R&S®FPL1000 combines the functions of a benchtop instrument with the portability of a handheld instrument.
- SSB phase noise: -108dBc ( Hz) at 10kHz offset to the 1GHz carrier
- DANL with preamplifier: -160dBm from 10MHz to 2GHz
- 10.1" high-resolution display
- Two USB 2.0 ports
- Soft menu selection
- Numerical keypad
- Measurement setup buttons
Nội Dung
FPL1003 spectrum analyser 5KHz to 3GHz,(FPL1-B5 additional interfaces, FPL1-B9 internal generator, FPL1-B22 RF preamplifier, FPL1-K54 EMI measurement application, Power cable, Quick start guide.
Sản Phẩm Liên Kết
Tìm Thấy 6 Sản Phẩm
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | Czech Republic Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 90308900 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Có RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Có RoHS |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | 1.2 |
