SEK-SDP31

SEK-SDP31 is a SDP31 differential pressure evaluation kit for SDP3x ultra-small differential pressure sensors. The small size and low weight of the SDP31 make new applications possible. Its small size also comes with its challenges for integration and evaluation. The SEK-SDP31 evaluation kit includes a flow element to make easy flow measurement evaluation in bypass of the SDP31 possible, and is an example on how to design the SDP31 into a target application. It builds on the next generation CMOSens® sensor chip that is at the heart of Sensirion’s new differential pressure and flow sensing platform. It features fast measurement speed, excellent accuracy and long-term stability and has no zero-point drift. Furthermore, it is reflow solderable and provides extended functionality, such as smart averaging, multiple temperature compensation modes, configurable I2C address and interrupts.

• Excellent repeatability, no drift, no offset
• Extended feature set – smart averaging
• Calibrated and temperature compensated
• SEK-SensorBridge required for a plug-and-play connection between the sensor and a PC (not included)

Nội Dung

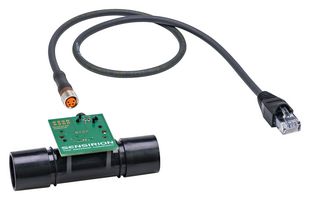

1x SDP31 on PCB, 1x connector cable, 1x flow element, Quick start guide.

Ghi chú

1x SEK-SensorBridge required.
