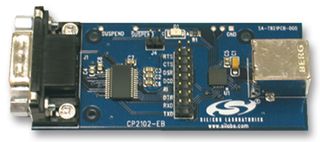

CP2102EK

CP2102EK evaluation kit based on the CP2102 USB to UART bridge. The CP2102 is a highly integrated USB to UART bridge controller provides a simple solution for updating RS232 designs to USB using a minimum of components and PCB space. The CP2102 includes a USB 2.0 full speed function controller, USB transceiver, oscillator, EEPROM, and asynchronous serial data bus (UART) with full modem control signals in a compact package. No other external USB components are required. The on chip programmable ROM may be used to customize the USB Vendor ID, Product ID, Product Description String, Power Descriptor, Device Release Number, and Device Serial Number as desired for OEM applications. The programmable ROM is programmed on board via the USB, allowing the programming step to be easily integrated into the product manufacturing and testing process. Royalty free Virtual COM Port (VCP) device drivers allows a CP2102 based product to appear as a COM port to PC applications.

• Single chip USB to UART data transfer
• USB function controller
• Asynchronous serial data BUS (UART)
• Virtual COM port device drivers
• USBXpress direct driver support

Ứng Dụng

Communications & Networking

Nội Dung

Board, RS232 cable, USB cable, Driver CD.
