2S232422485-PC-CARD

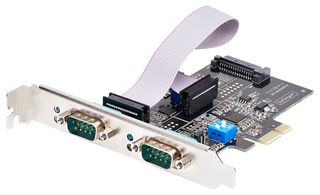

2S232422485-PC-CARD is a dual-port PCI Express to RS232/RS422/RS485 (DB9) serial card. Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 2-Port Serial PCI Express Card. The two DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices. This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-Port PCIe serial card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes).

• Easily add two external DB9 serial ports to your PC, ideal for legacy devices
• Each port operates independently, with DIP switches for selecting RS232, RS422 or RS485 connection
• Configurable per-port power over pin 9 via aux SATA power: 12V (1.5A), 5V (1.5A) or no power (RI)
• Per-port power modes are configured via jumpers
• Asix AX99100 chip and 16C1050 UART with compatibility for 16C450, 16C550, 16C650, 16C750, 16C950
• Max baud rate of 921.6Kb/s per port
• COM retention and 256 Byte FIFO
• Even, odd, none, space, and mark parity modes
• Supports Windows 7/8/10/11, Server 2016/2019/2022 & Linux 2.6.13+ (LTS versions only)
• ESD Protection: ±8kV (Contact), ±15kV (Air), ±15kV (HBM)
• Supplied with two optional low profile brackets
• 2 year manufacturer warranty

Nội Dung

Card, LP brackets, ribbon cable and user guide
