PEX1S1P950

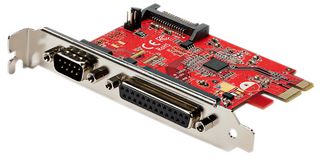

PEX1S1P950 is a PCIe card with serial and parallel port. This PCIe Parallel and Serial Combo Card installs into a single PCI-Express x1 slot in your computer, and adds a DB25 IEEE 1284 parallel port and DB9 RS 232 serial port to your system. The PEX1S1P950 is the latest version of our popular PEX1S1P952 combo card. The parallel port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment.

• Parallel/serial combo adaptor card built around an Asix AX99100 chip
• Maximum transfer rates up to 2.5Mb/s (parallel), 921.6Kb/s (serial)
• Parallel port is IEEE 1284 compatible and supports SPP/Byte/Nibble/ECP modes
• Serial port is compatible with 16950 UART with 256 byte FIFO buffer
• Optional SATA power input enables power on pin 9 of serial port with adjustable power output (5V-12V)
• Compliant with PCI Power Management 1.2
• Installs via full size PCI-Ex 2.0 x1 slot
• Supports Windows 7/8/10, Windows Server 2003+ and Linux 2.4.x-2.6.x (LTS versions only)
• Lifetime limited manufacturer warranty
