USB110EXT2

The USB 1.1 extender enables you to extend a USB 1.1 connection over distances of up to 40m using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location. The USB extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited.

• Features 1x USB 1.1 port and 1x RJ45 port
• Support for a maximum distance of up tp 40m over Cat5 or Cat6 cabling
• Full speed USB 1.1 compliant host interface, with data bandwidth up to 12Mbps
• Efficient circuit design provides up to 300mA of power at the remote end
• 8kV Contact and 16kV Air ESD protection
• Integrated USB cables
• No driver or software required, simple plug and play installation
• Dimensions (HxWxD): 25x40x85mm
• 3 Year manufacturer warranty

Nội Dung

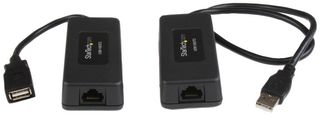

1x USB extender local unit, 1x extender remote unit and user guide
