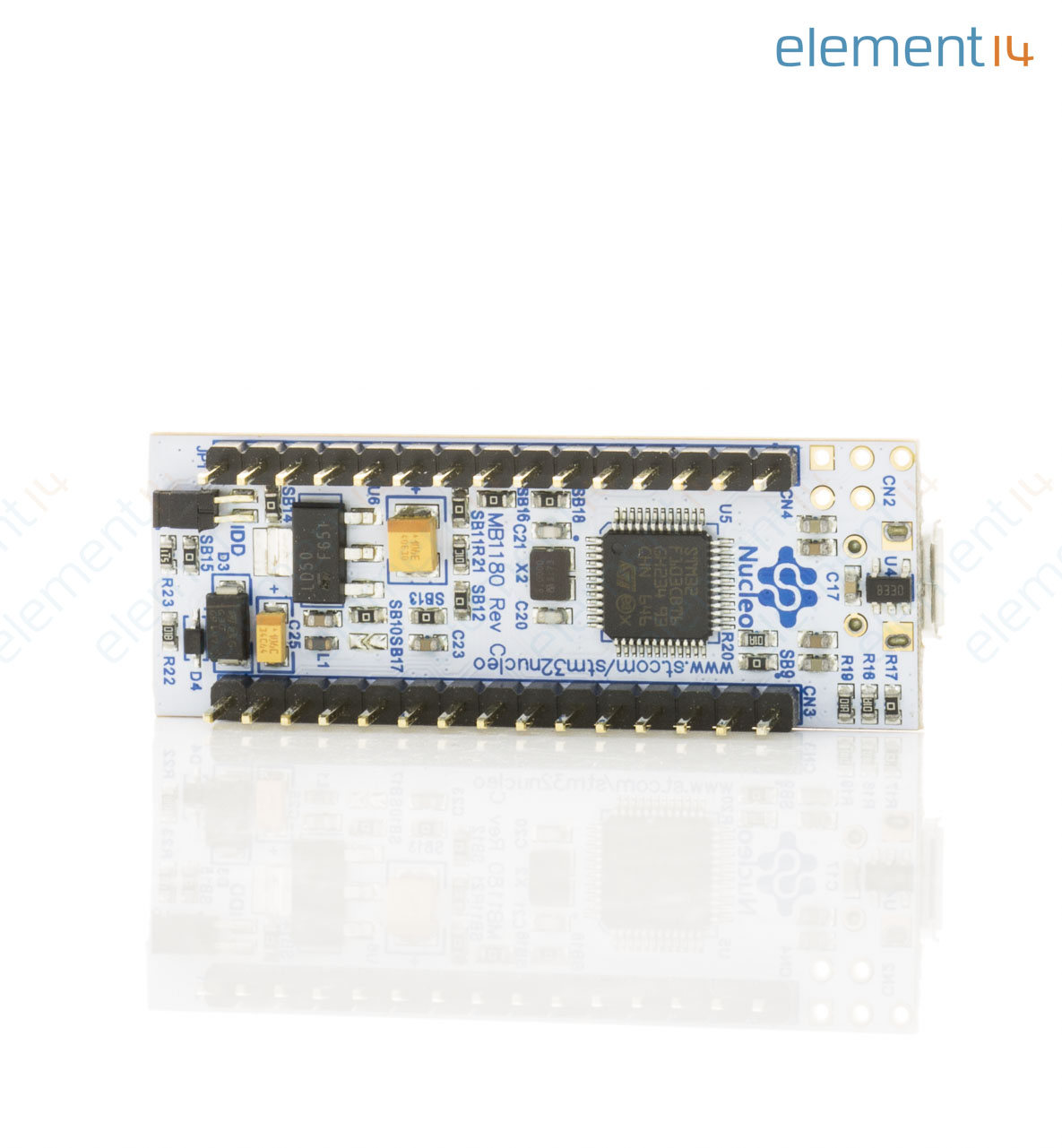

NUCLEO-F303K8
Development Board, STM32F303K8 MCU, On Board Debugger, Arduino Nano Extension, Reset Push Button

| Nhà Sản Xuất | STMICROELECTRONICS |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | NUCLEO-F303K8Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 54 tuần |
| Mã Đặt Hàng | 2500224 |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
900 Bạn có thể đặt trước hàng ngay bây giờ
| Số Lượng | Giá |
|---|---|
| 1+ | US$20.130 |
| 5+ | US$19.730 |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | STMICROELECTRONICS |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | NUCLEO-F303K8Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 54 tuần |
| Mã Đặt Hàng | 2500224 |
| Bảng Dữ Liệu Kỹ Thuật |
Tổng Quan Sản Phẩm
NUCLEO-F303K8 is a STM32 Nucleo-32 development board with STM32F303K8 MCU, supporting Arduino nano connectivity. It provides an affordable and flexible way for users to try out new concepts and build prototypes with any STM32 microcontroller line in 32-pin packages, choosing from the various combinations of performance, power consumption and features. The Arduino™nano connectivity makes it easy to expand the functionality of the STM32 Nucleo open development platform with a choice of specialized shields. The STM32 Nucleo-32 board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer. The STM32 Nucleo-32 board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.
- STM32 microcontrollers in 32-pin packages, Arm® Mbed Enabled™
- USB renumeration capability: (virtual Com, debug)port, mass storage (3 interfaces supported on USB)
- Flexible board power supply: USB VBUS, external source
- Three LEDs: USB communication (LD1), power LED (LD2), user LED (LD3)
- Reset push button
- Supported by wide choice of IDEs including IAR™, Keil®, GCC-based IDEs (AC6 SW4STM32)
Sản Phẩm Liên Kết
Tìm Thấy 2 Sản Phẩm
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | China Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 84715000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Có RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Có RoHS |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | .043998 |
