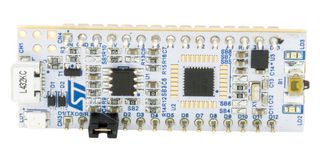

NUCLEO-L432KC
Development Board, STM32L432KC MCU, ST-LINK/V2-1 Debugger/Programmer, Arduino Connectivity

| Nhà Sản Xuất | STMICROELECTRONICS |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | NUCLEO-L432KCSao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 20 tuần |
| Mã Đặt Hàng | 2580786 |
| Phạm vi sản phẩm | STM32 MCU Nucleo Series |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Bạn cần thêm?
| Số Lượng | Giá |
|---|---|
| 1+ | US$15.880 |
| 5+ | US$15.570 |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | STMICROELECTRONICS |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | NUCLEO-L432KCSao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 20 tuần |
| Mã Đặt Hàng | 2580786 |
| Phạm vi sản phẩm | STM32 MCU Nucleo Series |
| Bảng Dữ Liệu Kỹ Thuật | |
| Silicon Manufacturer | STMicroelectronics |
| No. of Bits | 32bit |
| Silicon Family Name | STM32L4 |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M4 |
| Silicon Core Number | STM32L432KC |
| Kit Contents | Dev Board STM32L432KC |
| Product Range | STM32 MCU Nucleo Series |
| SVHC | No SVHC (25-Jun-2025) |
Tổng Quan Sản Phẩm
NUCLEO-L432KC is a STM32 Nucleo-32 development board with STM32L432KC MCU, supporting Arduino nano connectivity. It provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. The Arduino™ Nano V3 connectivity support allows the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo-32 board does not require any separate probe as it integrates the ST-LINK debugger/programmer. The STM32 Nucleo-32 board comes with the STM32 comprehensive free software libraries.
- STM32 microcontroller in 32-pin package
- 1 user LED, 1 reset push-button
- Board connectors:Arduino™ Nano V3 expansion connector Micro-AB USB connector for the ST-LINK
- Flexible power-supply options: ST-LINK, USB VBUS or external sources
- On-board ST-LINK debugger/programmer w/ USB re-enumeration capability: mass storage, Virtual COM
- Support of a wide choice of IDEs including IAR™, Keil® and GCC-based IDEs
- Board-specific features: Arm® Mbed Enabled™ compliant
Thông số kỹ thuật
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Silicon Family Name | STM32L4 |
| Core Sub-Architecture | Cortex-M4 |
| Kit Contents | Dev Board STM32L432KC |
| SVHC | No SVHC (25-Jun-2025) |
| No. of Bits | 32bit |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | STM32L432KC |
| Product Range | STM32 MCU Nucleo Series |
Tài Liệu Kỹ Thuật (2)
Sản Phẩm Liên Kết
Tìm Thấy 5 Sản Phẩm
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | China Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Có RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Có RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | .0432 |
