P-NUCLEO-USB002

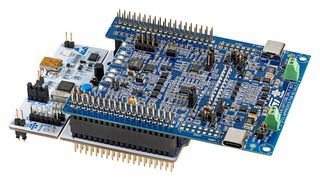

P-NUCLEO-USB002 is a STUSB1602 USB Type-C™ and power delivery Nucleo pack with NUCLEO-F072RB. The STM32 Nucleo pack is designed for USB Type-C™ and power delivery specifications. Used with the embedded X-CUBE-USB-PD certified software, the P-NUCLEO-USB002 represents a development tool enabling fast prototyping of USB PD applications leveraging ready to use ST componentry and software. The P-NUCLEO-USB002 kit is designed to exploit the performance of the STM32F072 32bit microcontroller based on ARM® Cortex®-M0 and two STUSB1602 USB Type-C™ port controllers, for developing applications that manage up to two USB Type-C™ ports. The STUSB1602 is a Type-C™ controller designed with 20V technology that integrates a USB Type-C™ state machine and a USB PD PHY + BMC driver. The P-NUCLEO-USB002 is fully configurable and ready to support different power roles like provider, consumer or DRP.

• 32bit ARM® Cortex® -M0-based microcontroller STM32F072RB with 128KB flash, 16KB SRAM
• Dual port solution based on certified USB Type-C™ port controller STUSB1602
• Type-C FSM with attach/detach and cable orientation detection
• USB PD PHY and BMC transceiver
• High voltage (20V) technology
• VBUS voltage monitoring, 600mA VCONN power switch
• VBUS & VCONN discharge paths, VBUS switch gate drivers
• Dead battery support, 22VCC lines protection
• Power connector to interface with external power supply
• USB 2.0 full speed data communication interface

Nội Dung

NUCLEO-F072RB development board, Power delivery expansion board with two embedded STUSB1602 Type-C™ controllers, USB Type-C™ fully-featured and certified cable.

Ghi chú

The X-CUBE-USB-PD is compliant with the USB Type-C™ 1.2 and USB Power Delivery 2.0 specifications.
