STEVAL-IHM001V1

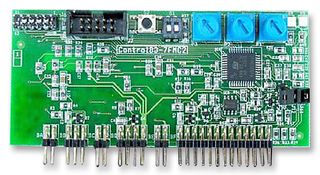

STEVAL-IHM001V1 is a BLDC and AC motor control board. The general hardware architecture of the reference design kit is based on an inverter topology suitable to efficiently drive three types of motors such as three phase BLDC/AC permanent magnet in six step mode, three phase AC induction and three phase BLAC PM motor (sinusoidal driven) plus a plug-in control board, based on ST7FMC MCU. The ST7FMC microcontroller is designed specifically for motor control applications and offers significant advantages compared to other microprocessor based approaches such as DSPs. The control board is compatible with all the three power boards of the reference design kit system.

• Quick to set up, to install and easy to run
• Easy to configure through the dedicated GUI
• Firmware libraries available for easy customization
• Design is reusable
• Optimised layout to provide very low level of interference between the power and the signal noise
• Modular approach with three different power board module(300W, 1kW, 3kW)

Ứng Dụng

Motor Drive & Control
