STEVAL-ILL002V3

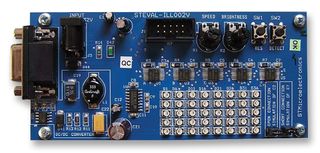

STEVAL-ILL002V3 demonstration board provides a complete solution for driving a high brightness LED array based on the STP08DP05 power logic driver with diagnostics features. The STP08DP05 is controlled by the ST7FLITE3x 8bit microcontroller. Forty high brightness LEDs are arranged on the board in a 5 x 8 matrix. The matrix is driven by five 8 channel STP08DP05 drivers, and the blue LEDs used are manufactured by OSRAM. The innovative feature of the STP08DP05 is the full error detection function on outputs so the status of outputs can be checked without invasive tests (using software).

• Brightness regulation
• Blinking speed regulation
• Animated text
• Error detection on output
• Graphic user interface (GUI)
• DC/DC converter

Ứng Dụng

LED Lighting
