| Nhà Sản Xuất | TE CONNECTIVITY |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 2013595-1Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 25 tuần |
| Mã Đặt Hàng | 1816581 |
| Phạm vi sản phẩm | Mini I/O Cable Assemblies |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
1,260 Bạn có thể đặt trước hàng ngay bây giờ
| Số Lượng | Giá |
|---|---|
| 1+ | US$14.250 |
| 10+ | US$12.120 |
| 25+ | US$11.370 |
| 100+ | US$10.310 |
| 250+ | US$9.660 |
| 500+ | US$9.210 |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | TE CONNECTIVITY |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 2013595-1Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 25 tuần |
| Mã Đặt Hàng | 1816581 |
| Phạm vi sản phẩm | Mini I/O Cable Assemblies |
| Bảng Dữ Liệu Kỹ Thuật | |
| Modular Connector Type | RJ45 Plug |
| Port Configuration | 1 x 1 (Port) |
| No. of Positions / Loaded Contacts (per Port) | 8P8C |
| LAN Category | Cat5e |
| IP Rating | - |
| Connector Mounting | Through Hole Mount |
| Connector Orientation | Right Angle |
| Shielding | Shielded |
| Magnetics | Without Magnetics |
| LEDs | Without LED |
| Light Pipes | Without Light Pipe |
| Product Range | Mini I/O Cable Assemblies |
| SVHC | 1,1'-(ethane-1,2-diyl)bis[pentabromobenzene] (DBDPE) (04-Feb-2026) |
Tổng Quan Sản Phẩm

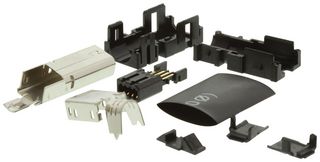

The 2013595-1 is a 8-contact type-1 industrial mini I/O Plug Kit with copper alloy contacts, glass-filled polyamide housing and nickel-plated copper alloy shield. The industrial mini I/O connector system is a small, compact, latching, wire-to-board I/O interface is suitable for the stringent demands of an industrial device. It is one quarter the size of a conventional RJ45 plug and is designed with two points of contact for increased reliability in high vibration environments. The unique latching system protects the plug from pull out during high vibration and accidental bumping. The system is most commonly used as an RJ45 replacement. It consists of 8 individual circuits that accommodate I/O signals.
- 30V Rated voltage
- 0.5A Current rating
- 1500 Cycles durability
- UL94V-0 Flammability rating
Ứng Dụng
Industrial, Automation & Process Control, Robotics
Thông số kỹ thuật
| Modular Connector Type | RJ45 Plug |
|---|---|
| No. of Positions / Loaded Contacts (per Port) | 8P8C |
| IP Rating | - |
| Connector Orientation | Right Angle |
| Magnetics | Without Magnetics |
| Light Pipes | Without Light Pipe |
| SVHC | 1,1'-(ethane-1,2-diyl)bis[pentabromobenzene] (DBDPE) (04-Feb-2026) |
| Port Configuration | 1 x 1 (Port) |
|---|---|
| LAN Category | Cat5e |
| Connector Mounting | Through Hole Mount |
| Shielding | Shielded |
| LEDs | Without LED |
| Product Range | Mini I/O Cable Assemblies |
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | China Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Có RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Có RoHS |
| SVHC: | 1,1'-(ethane-1,2-diyl)bis[pentabromobenzene] (DBDPE) (04-Feb-2026) |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | .024494 |
