| Nhà Sản Xuất | TE CONNECTIVITY |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 2357787-3Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 10 tuần |
| Mã Đặt Hàng | Cuộn Đầy Đủ3770943 Cắt Băng3770963 |
| Phạm vi sản phẩm | Free Height Series |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Bạn cần thêm?
| Dạng Đóng Gói | Số Lượng | Đơn giá: | Tổng |
|---|---|---|---|
| Cắt Băng | 1 | US$31.240 | US$31.24 |
| Tổng Giá | US$31.24 | ||
| Số Lượng | Giá |
|---|---|
| 1+ | US$31.240 |
| 17+ | US$30.400 |
| 52+ | US$29.540 |
| 140+ | US$28.690 |
| 350+ | US$27.830 |
| Số Lượng | Giá |
|---|---|
| 700+ | US$27.280 |
| 2100+ | US$23.870 |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | TE CONNECTIVITY |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 2357787-3Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 10 tuần |
| Mã Đặt Hàng | Cuộn Đầy Đủ3770943 Cắt Băng3770963 |
| Phạm vi sản phẩm | Free Height Series |
| Bảng Dữ Liệu Kỹ Thuật | |
| Mezzanine Connector Type | Plug |
| Pitch Spacing | 0.5mm |
| No. of Rows | 2Rows |
| No. of Contacts | 220Contacts |
| Connector Mounting | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Product Range | Free Height Series |
| SVHC | No SVHC (04-Feb-2026) |
Tổng Quan Sản Phẩm

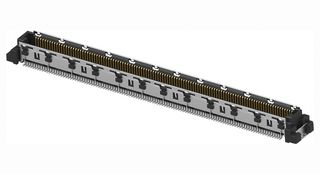

2357787-3 is a 0.5mm centreline, dual row, 220 contacts, surface mount PCB mount vertical header connector with 5mm stack height. The computer-on-module (COM) connector is a widely used modular CPU boards that feature high integration, quick design, easy installation and maintenance, and smooth upgrades. It is a ready-to-use, application-agnostic embedded platform that can accelerate the end product’s time-to-market in a cost-effective way. New contact design can economically enable better performance: higher speed, and improved mechanical and signal integrity performance. Primary industries applications are industrial machinery and equipment, test and measurement equipment, aerospace and defence, computer equipment and peripherals, medical devices and equipment, telecommunication equipment, security products.
- 8µin contact mating area plating material thickness
- Faster data speed, better SI performance
- Easier installation in operation, economic upgrade solution
- Data rate is 16GT/s
- Impedance is 85ohm, surface mount (SMT) PCB termination
- Temperature range from -45°C to 125°C
- Black primary product colour and LCP housing material
- Contact current rating is 0.5A maximum
- UL 94V-0 UL flammability rating
Thông số kỹ thuật
| Mezzanine Connector Type | Plug |
|---|---|
| No. of Rows | 2Rows |
| Connector Mounting | Surface Mount |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
| Pitch Spacing | 0.5mm |
|---|---|
| No. of Contacts | 220Contacts |
| Contact Material | Copper Alloy |
| Product Range | Free Height Series |
Tài Liệu Kỹ Thuật (4)
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | China Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Có RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Có RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | .004536 |
