| Nhà Sản Xuất | TE CONNECTIVITY |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 2357798-3Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 9 tuần |
| Mã Đặt Hàng | 3770966 |
| Phạm vi sản phẩm | Free Height Series |
| Mã sản phẩm của bạn | |
| Bảng Dữ Liệu Kỹ Thuật |
Bạn cần thêm?
| Số Lượng | Giá |
|---|---|
| 1+ | US$41.090 |
| 10+ | US$34.930 |
| 30+ | US$34.510 |
| 80+ | US$34.090 |
| 200+ | US$33.670 |
Thông Tin Sản Phẩm
| Nhà Sản Xuất | TE CONNECTIVITY |
|---|---|
| Mã Số Linh Kiện Nhà Sản Xuất | 2357798-3Sao chép |
| Thời gian giao hàng tiêu chuẩn của nhà sản xuất | 9 tuần |
| Mã Đặt Hàng | 3770966 |
| Phạm vi sản phẩm | Free Height Series |
| Bảng Dữ Liệu Kỹ Thuật | |
| Mezzanine Connector Type | Plug |
| Pitch Spacing | 0.5mm |
| No. of Rows | 2Rows |
| No. of Contacts | 220Contacts |
| Connector Mounting | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Product Range | Free Height Series |
| SVHC | No SVHC (04-Feb-2026) |
Tổng Quan Sản Phẩm

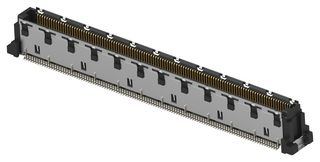

2357798-3 is a connector 8mm plug. The computer-on-module (COM) connector is a widely used modular CPU boards that feature high integration, quick design, easy installation and maintenance, and smooth upgrades. It is a ready-to-use, application-agnostic embedded platform that can accelerate the end product’s time-to-market in a cost-effective way. New contact design can economically enable better performance: higher speed, and improved mechanical and signal integrity performance. Primary industries applications are industrial machinery and equipment, test and measurement equipment, aerospace and defence, computer equipment and peripherals, medical devices and equipment, telecommunication equipment, security products.
- 220 position, contact mating area plating material thickness is 8µin
- Faster data speed, better SI performance
- Easier installation in operation, economic upgrade solution
- Data rate is 16GT/s, 0.5mm double-row contact pitch
- Impedance is 85ohm, surface mount (SMT) PCB termination
- Temperature range from -45°C to 125°C
- Black primary product colour
- Contact current rating is 0.5A maximum
- UL 94V-0 UL flammability rating
Thông số kỹ thuật
| Mezzanine Connector Type | Plug |
|---|---|
| No. of Rows | 2Rows |
| Connector Mounting | Surface Mount |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
| Pitch Spacing | 0.5mm |
|---|---|
| No. of Contacts | 220Contacts |
| Contact Material | Copper Alloy |
| Product Range | Free Height Series |
Tài Liệu Kỹ Thuật (3)
Sản Phẩm Liên Kết
Tìm Thấy 1 Sản Phẩm
Pháp Chế và Môi Trường
| Nước xuất xứ: Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ: | China Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện |
|---|---|
| Số Thuế Quan: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| Tuân thủ tiêu chuẩn RoHS: | Có RoHS |
| Tuân thủ tiêu chuẩn RoHS Phthalates: | Có RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Tải xuống Chứng Nhận Chất Lượng Sản Phẩm | Chứng Nhận Chất Lượng Sản Phẩm |
| Trọng lượng (kg): | .005316 |
