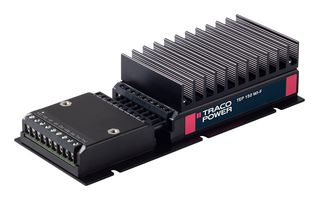

TEP 150-2412WI-F

TEP 150WI-F series 150W DC/DC railway converter modules have originally been designed for harsh industrial environment. High EMC immunity against surge, burst, radiated and conducted disturbances and the shock/ vibration and thermal shock resistance make them very popular for stringent requirements. With the extended input voltage ranges that cover the nominal 24, 36, 72 and 110VDC with ±40 % tolerance and the approval in accordance to EN 50155 standard they now also offer a reliable solution for mobile and stationary railway applications. At 100% load the current characteristics goes from constant voltage to constant current what makes the units also suitable for battery charger applications. With protection against overtemperature, overload, short-circuit, reverse input, overvoltage, input undervoltage lock-out they are hard to destroy. It features pollution degree PD 2, overvoltage category OVC I.

• Shielded metal case with screw terminals
• ultra-wide 4:1 input voltage ranges
• EN 50155 approval for railway applications
• Very high efficiency
• Constant current output characteristic for battery load applications
• With input filter for EN 55032 class B
• Wide operating temperature range from -40°C to +75°C
• Easy chassis and wall mounting
• 3-year product warranty
• EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1 safety standards
