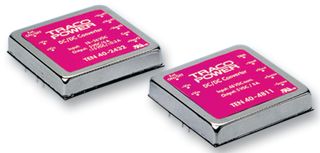

TEN 40-2423

The TEN 40-2423 is a 2-output 40W board-mount isolated high performance DC/DC Converter with wide 2:1 input voltage ranges in a compact low profile case with industry-standard footprint. It offers 18 to 36VDC input voltage range and 15/-15VDC at 1.4A output voltage. A very high efficiency allows an operating temperature range of -40 to 75°C. Built-in filters for both input and output minimize the need for external filtering. Further standard features include remote ON/OFF, output voltage trimming, overvoltage protection and under-voltage lockout and short-circuit protection. This device is suitable for use in many applications where isolated, tightly regulated voltages are required and space is limited on the PCB.

• Overtemperature protection
• Undervoltage lock-out
• Shielded metal case with insulated base plate
• 87% Typical efficiency
• 24VDC Nominal input voltage

Ứng Dụng

Power Management, Industrial, Communications & Networking
