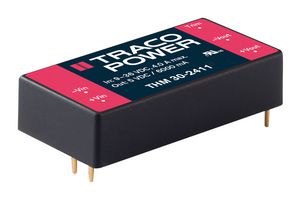

THM 30-2415

THM 30-2415 is a THM 30 Series DC/DC medical converter. THM 30 series is a range of medical 30W DC/DC converter in 2.0” x 1.0” plastic package and with wide 2:1 input voltage range. They provide a reinforced isolation system for 5000 VAC isolation and a very low leakage current of less than 2.5µA. The units are approved to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP and come along with an ISO 14971 risk management file. Design and production conform to the quality management system ISO 13485. With a high efficiency and highest grade components the converters can reliably operate in an ambient temperature range of –40°C up to +80°C. It constitutes a reliable solution not only for medical equipment but also for demanding ranges of application such as transportation, control & measurement or IGBT drivers.

• Input voltage range from 18 to 36VDC (24VDC nominal)
• Output voltage range of 24VDC
• Maximum output current is 1250mA
• Efficiency typically is 90%
• I/O isolation 5000VAC rated for 250VAC working voltage
• Acceptance criteria for electronic assemblies acc. to IPC-A-610 Level 3
• Low leakage current is less than 2.5µA
• EMC compliance to IEC 60601-1-2 4th edition and EN55032 class A
• Operating up to 5000m altitude
• 5-year product warranty
