Bạn cần thêm?
Số Lượng | Giá |
---|---|
1+ | US$5.910 |
10+ | US$5.900 |
25+ | US$5.890 |
50+ | US$5.880 |
100+ | US$5.870 |
250+ | US$5.670 |
Thông Tin Sản Phẩm
Tổng Quan Sản Phẩm

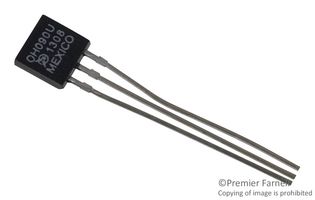

The OH090U is a Hallogic Hall-effect Sensor contain a monolithic integrated circuit which incorporates a Hall element, a linear amplifier, a threshold amplifier and Schmitt trigger on a single Hallogic® silicon chip. Included on-chip is a band gap voltage regulator to allow operation with a wide range of supply voltages. These devices feature logic level output and provide up to 21mA of sink current. This allows direct driving of more than 7 TTL loads or any standard logic family using power supplies ranging from 4.5 to 24V. Output amplitude is constant at switching frequencies from DC to over 200kHz. The Uni-polar turns on with a (logic level "0") after a sufficient magnetic field from the south pole of a magnet approached the symbolized face of the device (operating point) and turns off (logic level "1") after the magnetic field reached a minimum value.
- Through hole mounting
- Designed for non-contact switching operations
- Operates over broad range of supply voltages
- Operates with excellent temperature stability in harsh environments
Ứng Dụng
Industrial
Thông số kỹ thuật
Unipolar
TO-92
TO-92
24V
150°C
-
No SVHC (27-Jun-2024)
25mA
3Pins
4.5V
-40°C
-
-
Tài Liệu Kỹ Thuật (3)
Pháp Chế và Môi Trường
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Mexico
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
RoHS
RoHS
Chứng Nhận Chất Lượng Sản Phẩm
