Bạn cần thêm?
Số Lượng | Giá |
---|---|
1+ | US$11.860 |
5+ | US$11.440 |
10+ | US$11.010 |
20+ | US$10.580 |
40+ | US$10.150 |
96+ | US$9.720 |
Thông Tin Sản Phẩm
Tổng Quan Sản Phẩm

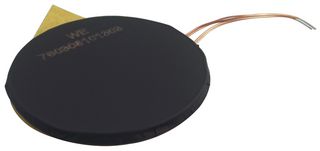

The 760308101303 is a wireless power charging Receiver Coil with a large number of mating cycles to avoid connector damage. The advantage of this high quality coil with litz wire and ferrite fortification in the centre is, this device can be charged on charging stations of (both the standards) the Qi standard of WPC and the PMA standard of power matters alliance. This WE-WPCC coil supports 8MHz typical self-resonant frequency and is recommended that the temperature of the transmitter coil does not exceed 105°C under worst case operating conditions.
- 3.5k/s Typical ramp-down rate
- Qi Standard compliant
- Litz wire used
- Highest Q-value available on market
- High reliable construction
Ứng Dụng
Consumer Electronics, Portable Devices, Industrial, Industrial, Wireless
Cảnh Báo
Cleaning agents that are used to clean application might damage or change the characteristics of the component, body, pins or termination.
Thông số kỹ thuật
WE-WPCC Series
± 10%
1 Coil
-
25@125kHz
-
1.31mm
-20°C
No SVHC (21-Jan-2025)
47µH
0.5ohm
3 Layers
8MHz
-
-
Board Mount
105°C
Tài Liệu Kỹ Thuật (2)
Sản Phẩm Liên Kết
Tìm Thấy 3 Sản Phẩm
Pháp Chế và Môi Trường
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Taiwan
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
RoHS
RoHS
Chứng Nhận Chất Lượng Sản Phẩm
